Wireline Products

Stimline manufactures electrically driven and automated wireline winches, which can be skid mounted or truck based.

For logging service companies, we can connect to downhole sensors from many suppliers and even run the winch based on those sensor values.

A range of iWinch units from small wire, fully electric to automated
Monitoring systems to allow remote and autonomous operation.
If you still need legacy solutions, Stimline has been delivering conventional wireline equipment for many years.

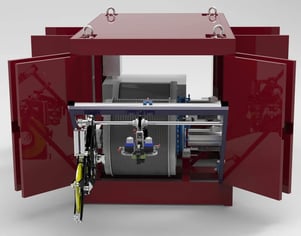

iWinch

The iWinch is a new series of innovative, fully electric and automated wireline units

Less complexity, less downtime, faster response, more intelligence – iWinch leads the way into the future

iWinch can operate as an integral part of completely autonomous wireline intervention systems

Features of iWinch Skid

Drums driven by permanent-magnet motors via heavy-duty gearboxes
All electric design - no hydraulics
Single or dual drum versions
Choice of drums for slickline, braided or E-line
Fully automated with multiple interlocks and auto functions
Optional hybrid drive (energy saving batteries) drastically reducing fuel consumption

The iWinch is prepared for exchange of data with the optional IDEX system, which enables remote monitoring and control, based on real time decision support from skilled professionals in the organization, integration of intelligent prediction software, pre-assessment of runs as well as many other functions. It is designed to be a vital part of our Intelligent Conveyance technology.

The iWinch system can be packaged in different ways, optimized for cased hole, open hole or combination jobs.

North Sea Version

Designed to exceed all NORSOK requirements in terms of capacity and performance, the iWinch is the North Sea wireline system of tomorrow. Being extremely compact and lightweight it fits all North Sea constricted platform spaces, is easily mobilized and rigged up and made ready for operation.

The iWinch may either be connected to a separate Power Unit skid consisting of control, electrical and cooling systems or everything may be combined on a single skid to reduce connections and rigging time. Normal North Sea set-up will be one dual drum iWinch Skid and one Add-On Skid for third party drums.

Four different drums cover everything from 0.092 slick to 7/32” braided.

The iWinch system is extremely flexible and, depending on options, be operated from multiple locations:

From an Operator Cabin, seated in an XOS Operator Station
From a desk-based XOS Operator Station located in an “ice-box” or Platform office
Integrated with the rig’s Drilling Control System, operated from the Driller’s Chair
From a small wireless rigging and operation panel
Remotely from an X-Wall running mixed reality visualization, with the feeling of “being there”
Or autonomously based on pre-defined run planning taking into account best practices, optimization and reactions to events based on historical learning

iWinch skids are built into rugged offshore containers certified to DnV 2.7-X and conforms to the latest revisions of NORSOK, DnV, CE, ATEX.

International Version

The iWinch Skid System for international markets is packaged in an 6.5ft wide container. This is ideal for compact offshore wireline systems, for onshore wireline systems that are hauled to site on a flatbed trailer or similar.

The system is divided in a winch area and an operator area divided by in internal window. The winch area can be fitted with a single or a dual drum winch system. The operator cabin is normally fitted with an XOS operator station, control system, electrical system and other utilities under the floor.

All advanced features available for the North Sea version can be selected for the International version.

Fully electrical truck-based hybrid wireline system – fully automated, of course!

Flexible - can be configured for slick, braided, E-line or combination work

iWinches are designed to operate as an integral part of completely autonomous wireline intervention systems

Features of iWinch Truck

Our iWinch Truck Systems combines an electrical and automated iWinch with a digital cab environment. Combined, these provide the foundation for advanced and high-quality wellsite operations.

iWinch Truck Systems can be outfitted for single or dual drums and can be set up to perform slick line, logging or combination type of work. Being fully computerized the truck is programmed with multiple safety interlocks and automated modes.

The drive system is completely electric with no hydraulic fluid onboard. Being electrical, the iWinch can log at extremely low stable speed over 100’s of feet, auto-jar at higher acceleration than any hydraulic system, dynamically limit tension in milliseconds to save wire breakage, and combine job modelling with downhole data to control running inhole or outhole at optimum speeds.

iWinch Truck Features

Drums driven by permanent-magnet motors via heavy-duty gearboxes – no chains
All electric design - no hydraulics
Single or dual drum versions
Choice of drums for slickline, braided or E-line
Fully automated with multiple interlocks and auto functions
Hybrid drive (energy saving batteries) drastically reducing fuel consumption
Can integrate downhole and surface data, and even operate based on downhole conditions
Ready for autonomous operations through Stimline’s Intelligent Conveyance technology

The iWinch is prepared for exchange of data with the optional IDEX system, which enables remote monitoring and control, based on real time decision support from skilled professionals in the organization, integration of intelligent prediction software, pre-assessment of runs as well as many other functions. It is designed to be a vital part of Stimline’s Intelligent Conveyance technology.

iWinch Truck Options

High quality sandwich-structure body
Choice of chassis manufacturer
Single Axle or Tandem Axle
Climate controlled interior
Generous storage space
Choice of measuring system
Conventional custom air bag tool racks
Arctic, desert and tropical oilfield environments

The worlds premium operator station brings completely new dimensions to wireline operations.

Forget traditional console with gauges and hydraulic levers. Step into the 21st century and take advantage of the highly graphical user interface.

XOS features incredible functions used to guide the operator down the well and back home in a safe and efficient manner.

Features of XOS Operator Stations

The Worlds Premium Operator Station For Well Intervention
Our XOS Operator Stations brings a completely new level of control and monitoring capabilities. With a highly graphical user interface, based on touch screens and advanced control system technology, the XOS simplify operations, display critical information in innovative formats, and implement control functions not possible with conventional user interfaces.

Best Seat In Town
The huge front console provides space for dual touch screens, while the ergonomic and comfortable chair has joysticks and other components. The chair is fitted with all ergonomic adjustments to obtain a comfortable seated position over a long shift.

IDEX Integration
The XOS is prepared for connection to the IDEX system, enabling multiple wireline units to become part of a potential company-wide real time support and job planning system. IDEX opens for a multitude of options, including downhole tool interface, advanced job modelling / simulation, advanced analytics and much more.

Includes multiple functions used to assist the operator during all phases of the operation

Connected to key equipment in the field to show real-time diagnostics

Optional IDEX integration enables you to view the job in 3D, in real time from anywhere

Features of XOS DTS

XOS DTS is a depth, speed and tension monitoring system for wireline operations. It replaces and extends the functions of traditional mechanical indicators / meters.

The system is easily set up, with many functions helping the wireline operator through critical operations. Includes automatic winch shutdown on user defined actions, for instance to avoid cable break on overpull.

Being part of the XOS product family means that the XOS DTS is prepared for connection to the IDEX system. With the IDEX system multiple wireline units can become part of a company-wide real time support and job planning system. IDEX opens for a multitude of option, including downhole tool interface, advanced job modelling / simulation, advanced analytics and much more.

Features of WTX 200 Slickline units

Standard Features

Various line sizes available.
Winch skid with single high-speed drum and innovative drum change out system, or double drum winch skid for combination work. Optional low-magnetic e-line drum.
Innovative spooling and accurate measurement heads.
Hydraulic (wet kit) driven drawworks.
Bodies and winch skids can be built onto any suitable truck chassis.
High quality aluminum cab.
Climate controlled interior.
Generous storage space.

Accessory Options

Choice of chassis manufacturer.
Single Axle or Tandem Axle.
XOS operator stations.
ASX Equipment Automation system.
Electrically driven (VFD with PM motor) winch skid.
Choice of measuring system.
Conventional custom air bag tool racks.
Custom compartment configuration.
8 – 30 kW hydraulic or 6 -12 kW diesel generators.
5K or 10K grease injector.
Other options available.

The unit can be modified to operate in arctic, desert and tropical oilfield environments.
All our Wireline Trucks are fabricated to provide a long service life at minimal operational cost.

Features of WTX 210 E-Line Trucks

Standard Features

Various line sizes available.
Winch skid with single high-speed drum and innovative drum change out system, or double drum winch skid for combination work. Optional low-magnetic e-line drum.
Innovative spooling and accurate measurement heads.
Hydraulic (wet kit) driven drawworks.
Bodies and winch skids can be built onto any suitable truck chassis.
High quality aluminum cab.
Climate controlled interior.
Generous storage space.

Accessory Options

Choice of chassis manufacturer.
Single Axle or Tandem Axle.
XOS operator stations.
ASX Equipment Automation system.
Electrically driven (VFD with PM motor) winch skid.
Choice of measuring system.
Conventional custom air bag tool racks.
Custom compartment configuration.
8 – 30 kW hydraulic or 6 -12 kW diesel generators.
5K or 10K grease injector.
Other options available.

The unit can be modified to operate in arctic, desert and tropical oilfield environments.
All our Wireline Trucks are fabricated to provide a long service life at minimal operational cost.

Features of WTX 260 Swabbing Trucks

Standard Features

Various line sizes available.
Winch skid with single high-speed drum and innovative drum change out system, or double drum winch skid for combination work. Optional low-magnetic e-line drum.
Innovative spooling and accurate measurement heads.
Hydraulic (wet kit) driven drawworks.
Bodies and winch skids can be built onto any suitable truck chassis.
High quality aluminum cab.
Climate controlled interior.
Generous storage space.

Accessory Options

Choice of chassis manufacturer.
Single Axle or Tandem Axle.
XOS operator stations.
ASX Equipment Automation system.
Electrically driven (VFD with PM motor) winch skid.
Choice of measuring system.
Conventional custom air bag tool racks.
Custom compartment configuration.
8 – 30 kW hydraulic or 6 -12 kW diesel generators.
5K or 10K grease injector.
Other options available.

The unit can be modified to operate in arctic, desert and tropical oilfield environments.
All our Wireline Trucks are fabricated to provide a long service life at minimal operational cost.

Features of WTX 280 Swivel Crane Trucks

Standard Features

Various line sizes available.
Winch skid with single high-speed drum and innovative drum change out system, or double drum winch skid for combination work. Optional low-magnetic e-line drum.
Innovative spooling and accurate measurement heads.
Hydraulic (wet kit) driven drawworks.
Crane capacity up to 20 Ton
odies and winch skids can be built onto any suitable truck chassis.
High quality aluminum cab.
Climate controlled interior.
Generous storage space.

Accessory Options

Choice of chassis manufacturer.
Single Axle or Tandem Axle.
XOS operator stations.
ASX Equipment Automation system.
Electrically driven (VFD with PM motor) winch skid.
Choice of measuring system.
Conventional custom air bag tool racks.
Custom compartment configuration.
8 – 30 kW hydraulic or 6 -12 kW diesel generators.
5K or 10K grease injector.
Other options available.

The unit can be modified to operate in arctic, desert and tropical oilfield environments.
All our Wireline Trucks are fabricated to provide a long service life at minimal operational cost.

Features of WSX 501 Modular Wireline System

The WSX 501MWS (Modular Wireline System) is designed to offer safe and efficient conveyance of slick, braided and electric wireline in an offshore environment. It meets all NORSOK technical, ergonomic, operational and safety requirements.
WSX 501MWS consists of the following main skids:

Operator Cabin Skid, designed to meet the most stringent ergonomic requirements. Operation of the wireline system is from the XOS operator station offering the most modern and automated user interface.
Power Unit Skid includes the VFD, control system and rig power interface enclosures. Cables for skid connections and supply power are coiled on the Power Unit Skid.
Modular Winch Skid utilizes a powerful electrical motor to drive drum(s) mounted on either the Single Drum Frame or the Double Drum Frame. Both Frames are skiddable modules that can accommodate different types of drums and wireline cables. The Frames are hydraulically skidded in and out of the Modular Winch Skid for drum change (or service / maintenance). The Modular Winch Skid comes complete with level wind, measuring heads and other components. Optional winch slewing provides improved spooling.
The Single Drum Frame accepts drums and cables of various sizes and makes. The Single Drum Frame are very flexible in design, and will be able to run 1/2″ Tuffline to maximum performance.
On the Double Drum Frame cables for slickline and braided services can be combined in several ways. All popular cable sizes can be used. With our optional lower split drum, the Double Drum Frame holds 10,000 m of each 0.160″ and 7/32″ on lower drum with 5/16″ Dyform on upper drum.

An optional Transport Container is used to safely transport Single or Double Drum Frames (with drums and wireline cables) in a protected manner. It consists of a simple offshore container into which the Drum Frames are skidded from the Modular Winch Skid and vice versa.
All skids are built into rugged offshore containers certified to DnV 2.7-1.
Stimline delivers a variety of drums with reinforced flanges and core from magnetic or non-magnetic material.
The wireline system is fully automated with Stimline’s ASX Equipment Automation technology, implementing many automated functions and safety interlocks.
The WSX 501MWS wireline system conforms to the latest revisions of NORSOK, DnV, CE, ATEX.
The wireline system is prepared for exchange of data with the optional IDEX system, which enables remote monitoring and control, based on real time decision support from skilled professionals in the organization, integration of intelligent prediction software, pre-assessment of runs as well as many other functions. It is designed to be a vital part of Stimline’s Intelligent Conveyance technology.

Wireline Pricing

We acknowledge that every company and well has its unique conditions that needs individual solutions.

Therefore, we make sure we use the necessary resources prior to wireline planning and operations commencing in order to fully understand client objectives. We collaborate to find the best possible solution and corresponding pricing for the project.

Want to get a indicative proposal or quote for your project?

IDEX

The transition to IDEX in our operations was simple, and I'm glad we've made the switch - the software is very intuitive, customizable, easy to use and has great displays of all key data to ensure that our jobs run smoothly. It is great to work with a company who request feedback and ideas and act on them quickly! Lastly, the capabilities of this software are incredible and I look forward to our expanded use of this system to truly see its ultimate potential throughout our company.

Jared Stennes
Site Manager, Step Energy Services

Archer (IDEX Designer)

With IDEX Designer our job planning has been drastically improved. We can now create models much faster so we can support all of our North Sea wireline operations more effectively than before.

OLAV EDLAND
Operation Manager,
Archer - The Well Company

Undisclosed Service Company

“IDEX Advisor will provide a “Sat Nav” system for well intervention operations. Recognising that technology should be able to help increase efficiency and reduce NPT, we have worked on creating a dashboard that presents an operator with all relevant information in a timely manner and an architecture that enables you to track the performance on each job versus the ideal job plan, allowing you to manage operational risk and work towards increased efficiency."

IDEX

Our Digital Strategy is critical to improved efficiency in the Intervention & Stimulation Alliance says Stian Ø. Jørgensen, VP D&W – Operations Intervention Alliance. Accurate planning, collaborative operations and full transparency in decision making are all expected within the Alliance. Having access to all of the latest data, information and analyses at all times, from wherever you are, is required to make this a reality. IDEX has already shown us how we can benefit from a truly collaborative platform.

Stian Jørgensen

VP D&W – Operations Intervention Alliance

Aker BP

Step Energy Services

“The initial application, IDEX Designer, had great features and was certainly easy to use. Throughout the initial launch phase, we collaborated with Stimline to test that the hydraulic and force models generated by Designer were verified by field-data so that our clients were confident in the technology”.

“Having the ability to use the same platform, for various functions during a project with all our information in one place, reduces the risk of errors associated with duplicating data,”

“The integration of IDEX into our programming certainly makes our lives a lot easier.”

Ben Layton

Technical manager coiled tubing services

Step Energy Services

“IDEX proved to be of great value when having to interpret large amounts of operational data, and rationalize these to decide on further action”

“IDEX has an intuitive way of presenting the data, enabling a crossfunctional team to make fast, fact-based decisions.”

Quotes from Aker BP Offshore Supervisor

IDEX was built as a platform that could be adapted to suit specific workflows. With the ability to link to existing datastores to access the latest well information and with customer specific best practices in easy to use job templates, it is designed to promote end-to-end planning, operations and analysis of all intervention jobs

Pal Larsen,

COO

Stimline

iWinch Wireline System

The iWinch all electric automated high performance wireline winch is simplifying wireline operations by use of automation and trusted mechanical components.

iWinch Wireline System_Skid

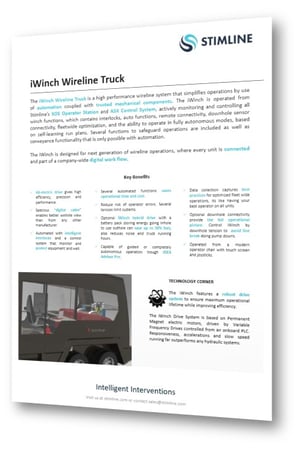

iWinch Wireline Truck

The iWinch Wireline Truck is a high performance wireline system that simplifies operations by use of automation coupled with trusted mechanical components.

iWinch Wireline Truck System

Christoffer Sørensen

Business Development Manager, Norway

+47 464 45 970

christoffer.sorensen(a) stimline.com

Wireline Products

The future is electric, digital and automated

Ready to Improve?

Stimline manufactures electrically driven and automated wireline winches, which can be skid mounted or truck based.

For logging service companies, we can connect to downhole sensors from many suppliers and even run the winch based on those sensor values.

Want all the Details?

Explore Wireline Products

One by One

iWinch

Wireline Automation

Iwinch

IWinch Skid Systems

Browse images:

Features of iWinch Skid

North Sea Version

International Version

iWinch

iWinch Truck Systems

Browse images:

Features of iWinch Truck

Wireline Automation

XOS Operator Station

Browse images:

Features of XOS Operator Stations

Wireline Automations

XOS DTS

Browse images

Features of XOS DTS

Legacy Wireline

WTX 200 Slickline Trucks

Browse images

Features of WTX 200 Slickline units

Standard Features

Accessory Options

Legacy Wireline

WTX 210 E-Line Trucks

Browse images

Features of WTX 210 E-Line Trucks

Standard Features

Accessory Options

Legacy Wireline

WTX 260 Swabbing Trucks

Browse images

Features of WTX 260 Swabbing Trucks

Standard Features

Accessory Options

Legacy Wireline

WTX 280 Swivel Crane Trucks

Browse images

Features of WTX 280 Swivel Crane Trucks

Standard Features

Accessory Options

Legacy Wireline

WSX 501 Modular Wireline System

Browse images

Features of WSX 501 Modular Wireline System

Resources

Want to learn more? Check Out

Wireline Pricing

Trusted by Customers Globally

See what customers are saying about working together with Stimline:

IDEX

Jared StennesSite Manager, Step Energy Services

Archer (IDEX Designer)

OLAV EDLANDOperation Manager, Archer - The Well Company

Undisclosed Service Company

IDEX

Stian Jørgensen

VP D&W – Operations Intervention Alliance

Aker BP

Step Energy Services

Ben Layton

Technical manager coiled tubing services

Step Energy Services

Quotes from Aker BP Offshore Supervisor

Pal Larsen,

COO

Stimline

Documentation

Download more information for free, whenever you need it:

Jared Stennes
Site Manager, Step Energy Services

OLAV EDLAND
Operation Manager,
Archer - The Well Company
